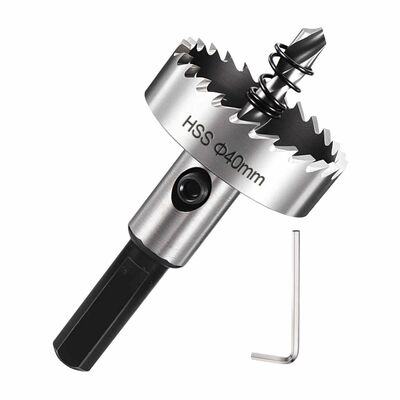

40mm HSS Hole Saws Bright Finish Smooth Boring HSS Hole Cutter

Professional 40mm HSS Hole Cutter | High-Elasticity 4341 Grade for Smooth Boring in Thin Steel

1. Problem: Brittle Fractures in Manual Field-Operations

• The Problem: On many job sites, boring a 40mm (approx. 1-1/2") hole is performed with a handheld cordless drill rather than a stationary press. In these "free-hand" conditions, the tool is rarely perfectly perpendicular. High-hardness premium alloys can be brittle; any sudden tilt or "catch" in the material often causes the teeth to snap or the body to crack.

• The Result: Immediate tool failure during critical installs, leading to project delays and the safety risk of metal fragments shattering under high rotational torque.

2. Cause: Lateral Stress and Structural Rigidity Mismatch

• Lateral Loading: At 40mm, the perimeter of the saw is large enough that a 1-degree tilt creates significant lateral stress.

• Rigidity Paradox: While extreme hardness is good for heat, it lacks the "give" needed for handheld work. When a hard, brittle tooth meets a high-torque catch, it cannot flex, so it breaks.

• Vibration Amplification: Large-diameter bores in thin sheet metal create harmonic vibrations that standard brittle bits cannot dampen, leading to a jagged, "out-of-round" 40mm hole.

3. Solution: High-Elasticity 4341 Metallurgical Matrix

• 4341 Yield Strength: Our 40mm Master Series is forged from HSS 4341 (W4Mo3Cr4V). This specific grade is formulated for a higher "Yield Strength," meaning the teeth can withstand slight lateral deflections without fracturing. It maintains a consistent 62-63 HRC, offering the perfect balance of sharpness and structural "toughness."

• Vibration-Dampening Monoblock: The integrated one-piece construction acts as a single mechanical unit. The 4341 steel matrix naturally absorbs the micro-vibrations common in handheld drilling, resulting in a smoother, more controlled boring experience and a cleaner 40mm finish.

• Precision-Ground 135° Split Point: The center pilot drill features a 135° split-point geometry. This ensures the 40mm saw "bites" the center immediately without walking, providing a stable axis that protects the perimeter teeth from uneven engagement.

4. Technical Specifications (Universal Standards)

5. Professional Industry Applications

• Electrical System MRO: The industry-standard size for M40 electrical conduits and large-bore cable glands in mild steel cabinets and plastic enclosures.

• General Maintenance & Fabrication: Reliable, cost-effective boring in aluminum extrusions, brass plates, and mild steel profiles (up to 4mm).

• Automotive Accessory Mounting: Precision boring for installing high-capacity intake ports or specialized sensors in thin-walled vehicle panels where impact resistance is key.

6. Selection Guide: The "Handheld Workhorse"

• Material Versatility: Optimized for Mild Steel (≤ 4mm), Aluminum, Copper, Brass, and Wood/Plastics. (For thick 304 Stainless Steel, please see our M2 or M35 series).

• Operational Tolerance: 4341 is the "insurance policy" for your shop floor; it is far more resistant to the "bumps and tilts" of daily manual use compared to harder, more brittle grades.

• RPM Optimization: For 40mm in mild steel, maintain 250 - 350 RPM. For aluminum or plastics, the tool is stable up to 600 RPM.

7. FAQ: Expert Technical Support

• Q: Why should I choose 4341 over M2 for my general maintenance team?

  • A: M2 is superior for heat but more brittle. If your team primarily uses handheld cordless drills on a variety of non-stainless materials, the 4341 grade will survive "human error" and accidental drops much better than harder grades.

• Q: Is 40mm a common standard for electrical work?

  • A: Yes. 40mm is the specific diameter required for M40 industrial fittings. This saw ensures a snug, professional fit that maintains the seal integrity of the enclosure.

• Q: Can the center drill be resharpened?

  • A: Yes. The 4341 steel pilot drill can be easily touched up with a standard grinder, and if necessary, the entire center bit is replaceable by loosening the side grub screw.

8. Technical Quality & Trust Information

• Fully Ground Construction: Unlike milled saws, our 4341 series is fully ground from solid stock, ensuring perfectly symmetrical teeth and superior concentricity across the 40mm diameter.

• Verified Hardness: Every tool is vacuum-hardened to a uniform 62-63 HRC, ensuring no soft spots and consistent boring performance.

• Compliance: Manufactured to international engineering tolerances for consistent, safe, and professional results in general industrial fabrication.
