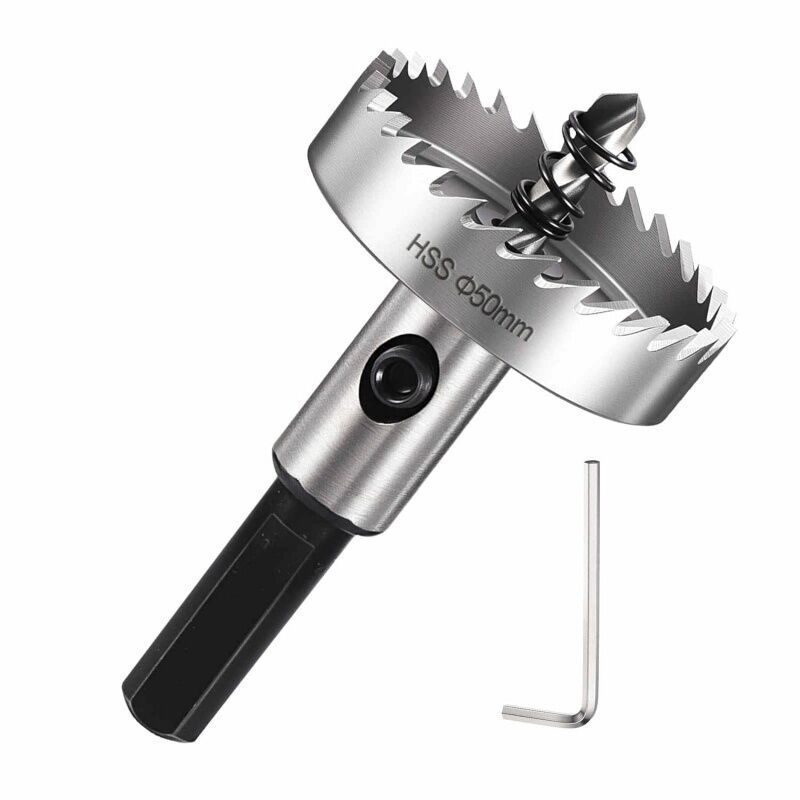

50mm Hss Hole Saw Cutter 63 HRC W4Mo3Cr4V High Speed Steel Saw Drill Bit

50mm HSS 4341 Master Series | Precision Ground One-Piece Boring Bit for 2-Inch Conduit Fittings

1. Problem: Mechanical Shock and "Shatter-Failure" in Large Bores

• The Problem: Boring a 50mm hole in a non-stabilized environment (such as using a handheld drill on a job site) involves significant erratic torque. When using extremely hard, brittle alloys at this diameter, any sudden "catch" or tilt often leads to the teeth shattering or the tool body cracking under the strain.

• The Result: Immediate tool destruction and the safety risk of flying metal fragments, coupled with project delays as the operator is forced to replace expensive, brittle bits that couldn't handle the "real-world" impact of manual operation.

2. Cause: Rigidity Imbalance and Vibrational Harmonics

• Lateral Loading: At 50mm, the perimeter speed is high. If the tool is too rigid, it cannot absorb the micro-vibrations of the cut.

• Stress Concentration: Standard high-hardness bits are designed for rigid drill presses. When used free-hand, the lateral stress on the 50mm cup exceeds the material's yield strength, causing brittle fractures rather than a clean cut.

3. Solution: The 4341 High-Elasticity Metallurgical Matrix

• Balanced 4341 Metallurgy: Our 50mm Industrial Series is forged from HSS 4341 (W4Mo3Cr4V). This grade is specifically formulated with a higher "Yield Strength," allowing the teeth to withstand slight mechanical shocks without fracturing. It maintains a consistent 62-63 HRC, offering the optimal balance of cutting sharpness and structural "give."

• Vibration-Dampening Monoblock: The integrated one-piece construction acts as a single mechanical unit. The 4341 steel matrix naturally absorbs the harmonic resonance common in large-diameter thin-metal boring, resulting in a smoother, more controlled experience and a perfectly circular 50mm finish.

• Integrated Centric Stability: By eliminating the separate arbor, we ensure the 50mm cup rotates on a perfectly true axis. This reduces lateral stress on the perimeter teeth, significantly extending the tool's life in non-ferrous and mild steel applications.

4. Technical Specifications (Universal Standards)

5. Professional Industry Applications

• General Electrical MRO: The industry-standard size for 2-inch electrical conduits and large cable glands in mild steel cabinets and plastic enclosures.

• Commercial Fabrication: Reliable, cost-effective boring in aluminum extrusions, brass plates, and mild steel profiles (up to 4mm).

• Signage & Display Construction: Precision boring in aluminum composite panels (ACP) and acrylics where impact resistance and clean edges are paramount.

6. Selection Guide: The "Handheld Workhorse"

• Material Versatility: Optimized for Mild Steel (≤ 4mm), Aluminum, Copper, Brass, and high-impact Plastics. (For heavy 304 Stainless Steel, please consider our M2 or M35 series).

• Operational Tolerance: 4341 is the "insurance policy" for the job site; it is far more resistant to the "bumps and tilts" of daily manual use compared to harder, more brittle grades.

• RPM Optimization: For 50mm in mild steel, maintain 200 - 250 RPM. For aluminum or plastics, the tool is stable up to 400 RPM.

7. FAQ: Expert Technical Support

• Q: Why choose 4341 over M2 for my general maintenance team?

  • A: 4341 is less brittle. If your team primarily uses handheld cordless drills, the 4341 grade will survive "human error" and accidental drops much better than harder, more heat-focused grades.

• Q: Is the center drill replaceable?

  • A: Yes. The 135° split-point pilot drill is secured by a side-mounted grub screw. If the pilot becomes dull, it can be easily replaced or resharpened to ensure the tool continues to center perfectly.

• Q: Does this 50mm saw require a pilot hole?

  • A: No. The integrated split-point center drill acts as its own pilot, ensuring instant positioning and preventing "walking" on polished metal surfaces.

8. Technical Quality & Trust Information

• Fully Ground Construction: Unlike milled or stamped saws, our 4341 series is fully ground from solid stock, ensuring perfectly symmetrical teeth and superior concentricity across the 50mm diameter.

• Verified Hardness: Every tool is vacuum-hardened to a uniform 62-63 HRC, ensuring no soft spots and consistent boring performance.

• Compliance: Manufactured to international engineering standards for consistent, safe, and professional results in general industrial fabrication.
