| Brand Name: | XRTOOLS |
| Model Number: | 20mm |
| MOQ: | 200pcs |
| Price: | $1.18-20.98/pc |
| Delivery Time: | 45DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
The Problem: When CNC operators attempt to profile (side-mill) tough ferrous metals like P20 tool steel, 4140 chromoly, or cast iron, the lateral cutting forces are immense. If an operator uses a standard 2-flute or 3-flute tool for this heavy side-loading, the tool physically bends microscopic amounts during the cut—a phenomenon known as "tool deflection."
The Result: Deflection causes harmonic chatter (violent vibrations), which leaves a terrible ribbed, wavy surface finish on the workpiece walls, wears out machine spindle bearings, and frequently snaps the fragile cutter at the shank.
Weak Core Architecture: Tools with fewer flutes (like 2-flutes) require deep valleys to evacuate chips, which leaves a very thin "web" (the solid steel core) in the center of the tool. A thin core cannot withstand the brute lateral force of milling hard steel.
Low Edge Frequency: Fewer cutting edges mean each edge takes a massive "bite" out of the steel, spiking the impact force and shock on the tool with every revolution.

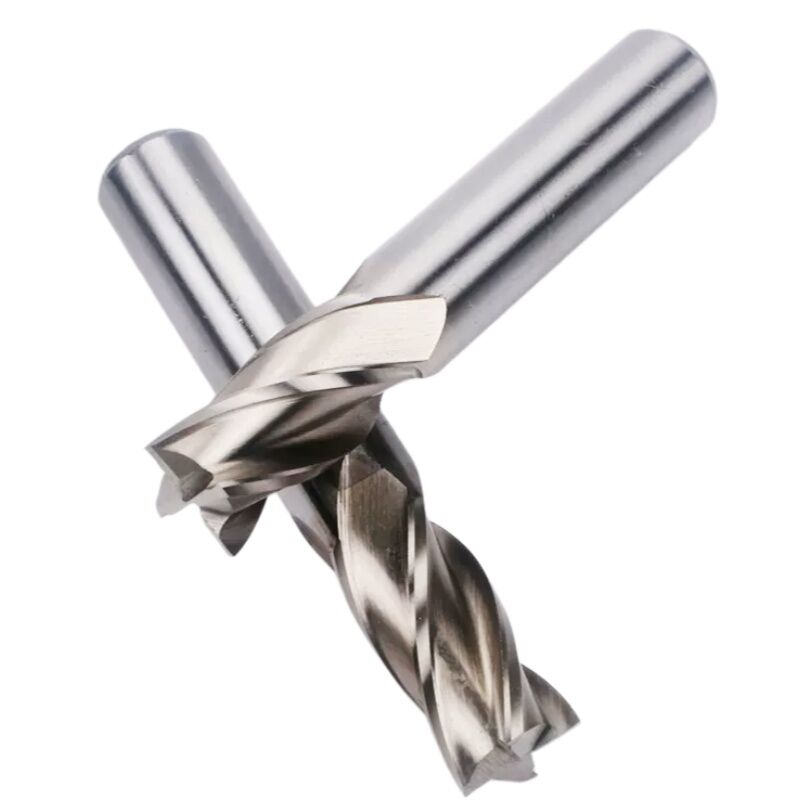

Hyper-Rigid Thick Core: This XRTOOLS 4-Flute end mill is engineered with a maximized web thickness. Because it has four shallower flutes, the solid steel backbone in the center of the tool is vastly thicker. This provides absolute torsional rigidity, completely eliminating tool deflection and chatter when side-milling tough structural steels.
High-Frequency Surface Finishing: With four cutting edges engaging the material per revolution, the "chip load" (the amount of metal removed by each tooth) is distributed evenly. This high-frequency shearing action leaves a flawless, mirror-like finish on vertical cavity walls and outside profiles.
TiAlN (Titanium Aluminum Nitride) Coating: Machining hard steel generates extreme localized heat. This tool is armored with a dark violet/black TiAlN PVD coating. Unlike standard TiN, TiAlN actually becomes harder and more thermally stable as it gets hotter, forming a microscopic layer of aluminum oxide that shields the HSSE core from thermal shock up to 800°C.
Certified DIN 844 Standard: Precision-ground to the strict German DIN 844 manufacturing standard, guaranteeing zero runout when clamped in professional ER collets or high-precision hydraulic milling chucks.
| Specification Pillar | Detail | Industrial Benefit |
| Manufacturing Standard | DIN 844 | Certified global standard for dimensional accuracy and concentricity. |
| Material Base | Premium HSSE (Cobalt M35) | Exceptional shock resistance for interrupted cuts in tough steel. |
| Surface Armor | TiAlN Coating | Extreme heat and wear resistance; thrives in high-temp cutting. |
| Flute Configuration | 4-Flute (Peripheral Focus) | Maximizes core rigidity and delivers a superior surface finish. |
| Shank Type | Straight Cylindrical | Provides maximum clamping surface area to prevent pull-out. |
| Target Material | Tool Steel, Cast Iron, Alloy Steel | Optimized for hard, abrasive, and tough ferrous metals. |
Mold & Die Manufacturing: The definitive tool for profiling and finishing the vertical walls of injection mold cavities and heavy-duty metal stamping dies.
Aerospace & Defense: Machining complex external profiles on titanium brackets, landing gear components, and tough superalloys.
Heavy Equipment Maintenance: Squaring up worn keyways and facing off high-carbon steel components on mining and earthmoving machinery.
Profile and Side-Mill (Do Not Plunge): Standard 4-flute end mills have a center hole and are not designed to plunge straight down like a drill bit. To enter a closed pocket, you must pre-drill a pilot hole or use a "ramping/helical interpolation" CNC toolpath to enter the metal at a shallow angle.
Push the Feed Rate: Because the cutting load is shared across 4 teeth, you must increase your feed rate (table speed) compared to a 2-flute tool to ensure each tooth is taking a proper chip and not just rubbing the steel.
Leverage Air Blast for TiAlN: While coolant can be used, TiAlN coating thrives on heat. In many CNC steel-milling applications, using a high-pressure air blast (to clear chips) rather than liquid coolant prevents "thermal shock" (micro-cracking of the cutting edge caused by rapid heating and cooling).
Q: Why shouldn't I use this 4-flute end mill on aluminum?
A: Aluminum is a soft, sticky metal that produces large, stringy chips. A 4-flute end mill has a thick core, which means the flute valleys (gullets) are very narrow. If you use it on aluminum, those narrow valleys will instantly pack full of metal, the tool will bind, and it will snap off. Always use a 2-flute or 3-flute tool for aluminum.
Q: What is the difference between this TiAlN coating (dark) and TiN coating (gold)?
A: TiN (gold) is a great general-purpose coating, but it begins to break down around 500°C. TiAlN (dark violet/black) is an advanced high-performance coating specifically for hard steels and abrasive alloys. It maintains its hardness up to 800°C, making it vastly superior for dry machining or heavy roughing in tough materials.
Q: Can I use this in my manual milling machine (Bridgeport)?
A: Yes, absolutely. The HSSE (Cobalt) core is the perfect material for manual machines. Unlike solid carbide, which is brittle and easily shattered by the vibrations common in manual milling, the HSSE core has the ductility (shock-absorption) to handle slight chatter and interrupted cuts safely.
