| Brand Name: | XRTOOLS |
| Model Number: | 1-3/4 |
| MOQ: | 200pcs |
| Price: | $1.18-20.98/pc |
| Delivery Time: | 45DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
The Problem: In Maintenance, Repair, and Operations (MRO) or general job shops, machinists frequently use manual knee mills (like Bridgeports) to repair broken parts, cut new keyways, or face off warped steel. When they attempt to take a heavy roughing cut using a smooth-shank tool held in a standard collet, the rotational torque can cause the tool to spin or physically pull out of the chuck, ruining the workpiece. Furthermore, if they use modern solid carbide tools, the inherent vibration and inconsistent feed rates of manual milling cause the brittle carbide edges to shatter instantly.
The Result: Scrapped repair jobs, destroyed collets from spinning shanks, and hundreds of dollars wasted on shattered carbide tooling that was never designed for manual machine environments.
The Collet Limitation: Smooth shanks rely entirely on the squeezing friction of a collet. During heavy side-loading or deep slotting, that friction is often overcome by the mechanical pulling force of the spiral flutes.
Carbide Rigidity: Solid carbide requires absolute rigidity and constant CNC-controlled feed rates. Human hands turning a manual mill handwheel naturally create micro-pauses and vibrations, which act as a hammer against the brittle carbide edge.
Zero-Slip Weldon Flat: The defining feature of this XRTOOLS end mill is the precision-ground Weldon Flat on the shank. When secured in a dedicated end mill holder, a set-screw drives directly against this flat surface. This creates an unbreakable, positive mechanical lock. The tool absolutely cannot spin and cannot be pulled out, granting the machinist total confidence during heavy, aggressive cuts.
HSSE-M35 Cobalt Ductility: Forged from M35 High-Speed Steel with a 5% Cobalt matrix. This alloy provides the perfect "forgiving" core. It has the thermal stability (red hardness) to withstand high heat, but crucially possesses the ductility (shock absorption) to survive the vibrations, chatter, and inconsistent feed rates of manual machining without chipping.
Versatile Bright Finish (Uncoated): By leaving the tool uncoated and highly polished, we preserve the most acute, razor-sharp cutting edge possible. This makes it an incredibly versatile "Swiss Army Knife" for the shop floor—equally capable of shearing mild steel, cleanly cutting brass, and profiling aluminum without the coating drag that causes material welding.

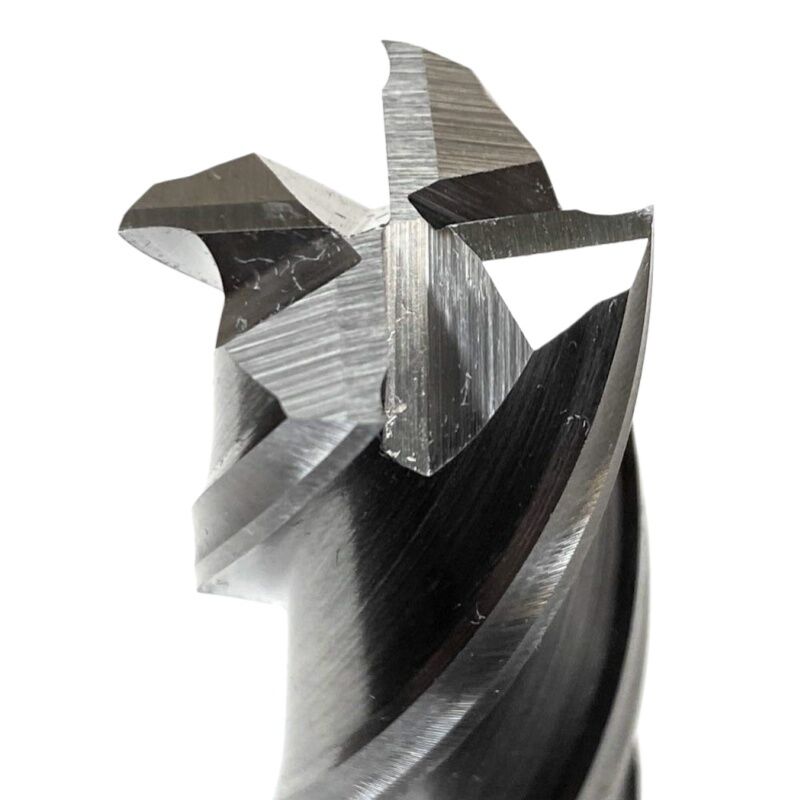

4-Flute Surface Finish: The 4-flute architecture maximizes the solid steel core in the center of the tool, preventing deflection (bending) during heavy side-milling and ensuring a smooth, chatter-free finish on vertical walls.
| Specification Pillar | Detail | Industrial Benefit |
| Shank Architecture | Weldon Flat (DIN 1835-B / ANSI) | Mechanical set-screw locking prevents tool pull-out. |
| Material Base | Premium HSSE (M35 Cobalt) | High shock resistance; thrives in manual/unstable milling. |
| Surface Finish | Bright Finish (Uncoated) | Razor-sharp versatility for multi-material job shops. |
| Flute Configuration | 4-Flute (Right Hand Spiral) | High core rigidity prevents tool bending under side-load. |
| End Geometry | Square End | Ideal for sharp 90-degree internal corners and facing. |
| Target Application | General Purpose / MRO | The daily workhorse for mild steel, cast iron, and brass. |
Maintenance & Repair Operations (MRO): The ultimate reliable cutter for repairing heavy equipment, cutting drive-shaft keyways, and facing off warped engine components.
Manual Job Shops: The required tooling for operators using manual Bridgeport-style knee mills where tool pull-out and vibration are constant threats.
Custom Fabrication: Versatile enough to transition from squaring up a block of low-carbon steel to slotting a brass fixture in a single shift.
Mandatory Holder Usage: Do not put a Weldon shank tool into a standard ER collet or R8 collet. The missing material on the flat side will cause the collet to clamp unevenly, introducing runout (wobble) and permanently springing your collet. You must use a solid End Mill Holder with a set-screw.
Lubrication is Essential: Because this is an uncoated Bright Finish tool, it does not have the thermal armor of a coated end mill. You must flood the cutting zone with cutting oil or water-soluble coolant to manage heat and flush chips, especially when cutting steel.
Side-Milling Focus: A standard 4-flute end mill lacks the deep valleys required to evacuate chips vertically. Use this tool primarily for profiling (side-milling) and open slotting. Avoid plunging straight down into solid material.
Q: Why would I choose an uncoated tool instead of a TiN or TiAlN coated one?
A: If you are cutting one specific tough material (like 4140 steel) all day on a CNC, you should use a coated tool. However, in a repair shop where you cut steel in the morning, brass at noon, and aluminum in the afternoon, an uncoated "Bright Finish" tool is vastly superior. Coatings can cause aluminum and brass to stick to the tool, whereas a sharp, uncoated edge cuts soft metals cleanly and is still tough enough for mild steel.
Q: Can the Weldon flat cause the tool to spin off-center?
A: No. End mill holders are precision-bored. The cylindrical part of the shank provides exact concentric alignment, while the set-screw on the flat simply prevents rotation and axial movement.
Q: How fast should I run an HSS-Co tool compared to Carbide?
A: HSSE (Cobalt) tools generally run at about 50% to 60% of the RPM (Surface Footage) of solid carbide. However, because they are tougher, you can often push a heavier "chip load" (feed rate per tooth) without fear of snapping the tool. Focus on taking a steady, heavy chip rather than spinning the tool at maximum speed.
