| Brand Name: | XRTOOLS |
| Model Number: | 1/4-20 |
| MOQ: | 200PCS |
| Price: | $0.75-38.55/PCS |
| Delivery Time: | 45DAYS |
| Payment Terms: | L/C, D/P, T/T, Western Union |
Many overseas buyers struggle with imperial dies that produce "loose" threads, failing to meet the strict Class 2A tolerance required for North American industrial standards.
In the oil, gas, and automotive sectors, a thread that isn't perfectly formed to the correct TPI (Threads Per Inch) can lead to catastrophic pressure leaks or mechanical failure.
Low-grade dies often gall the material, leaving a ragged finish that prevents high-grade fasteners from seating correctly.
Imperial threading involves complex flank angles ($60^circ$ for UN series). If the die isn't CNC-ground, the pitch diameter varies, causing the bolt to be too tight or too loose.
Furthermore, standard alloy dies cannot handle the heat generated when threading high-tensile inch-series rods, leading to "teeth rounding" and inconsistent thread profiles over long production runs.

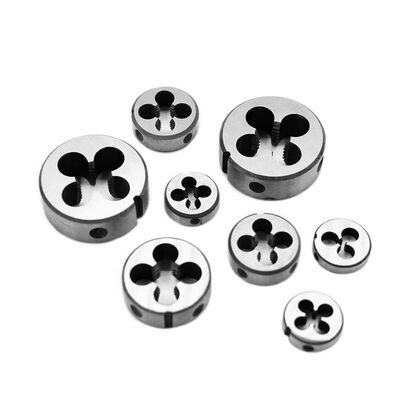

Our HSS-M2 Imperial Dies are engineered specifically for the Unified Thread Standard. Every die features a precision-ground 3-thread lead-in chamfer to ensure easy starting and perfect alignment.
Utilizing vacuum-hardened High-Speed Steel (HRC 63-65), our tools maintain a razor-sharp edge even under high-torque manual threading or high-speed machine operations. The mirror-polished chip holes ensure that "stringy" chips from alloy steels are evacuated instantly, preventing surface galling.
| Thread Size (Inch) | TPI (UNC / UNF) | Outer Diameter (O.D.) | Thickness (H) | Best Rod Diameter (inch) |
| #4 (0.112) | 40 UNC / 48 UNF | 13/16" or 20mm | 5 mm | 0.108" |
| #10 (0.190) | 24 UNC / 32 UNF | 13/16" or 20mm | 7 mm | 0.185" |
| 1/4" | 20 UNC / 28 UNF | 1" or 25mm | 9 mm | 0.245" |
| 5/16" | 18 UNC / 24 UNF | 1" or 25mm | 9 mm | 0.307" |
| 3/8" | 16 UNC / 24 UNF | 1-1/2" or 38mm | 14 mm | 0.369" |
| 1/2" | 13 UNC / 20 UNF | 1-1/2" or 38mm | 14 mm | 0.493" |
| 5/8" | 11 UNC / 18 UNF | 1-1/2" or 38mm | 14 mm | 0.617" |
| 3/4" | 10 UNC / 16 UNF | 2" or 50mm | 16 mm | 0.741" |
| 1" | 8 UNC / 12 UNF | 2" or 50mm | 16 mm | 0.990" |
| 1-1/2" | 6 UNC / 12 UNF | 3" or 75mm | 20 mm | 1.488" |
Oil & Gas Maintenance: Precision-cut UNF threads for high-pressure valves and fittings.
Classic Automotive Restoration: Essential for re-threading or manufacturing custom fasteners for US-spec engines and chassis.
Aerospace Ground Support: High-accuracy #4 to 1/2" series for instrumentation and electronic housing assemblies.
Heavy Infrastructure: Large-scale UNC threading for bridge bolts and structural anchors in the North American market.
1. TPI Verification: Always verify your Threads Per Inch (TPI) before threading. Using a UNC die on a UNF-prepped rod will destroy both the workpiece and the tool.
2. Fractional O.D. Matching: We offer dies in both metric (mm) and fractional (inch) outer diameters to fit all types of die stocks (handles) used worldwide.
3. The Class 2A Advantage: Our HSS dies are set to a Class 2A tolerance, the most widely used industrial standard, providing the perfect balance between ease of assembly and thread strength.
Q: What is the difference between UNC and UNF?
A: UNC (Coarse) is for general applications and deep-hole threading in softer materials. UNF (Fine) has a smaller helix angle and higher tension strength, making it ideal for precision adjustments and vibration-resistant assemblies.
Q: Can these dies thread high-tensile Grade 8 bolts?
A: Yes. Thanks to the HSS-M2 substrate and 100% ground profile, these dies can successfully thread or restore Grade 5 and Grade 8 fasteners when used with high-quality cutting fluid.
Q: Do you offer NPT (Pipe Thread) dies?
A: Yes. We carry a full range of NPT and BSPT tapered pipe dies in HSS for plumbing and hydraulic repair.
