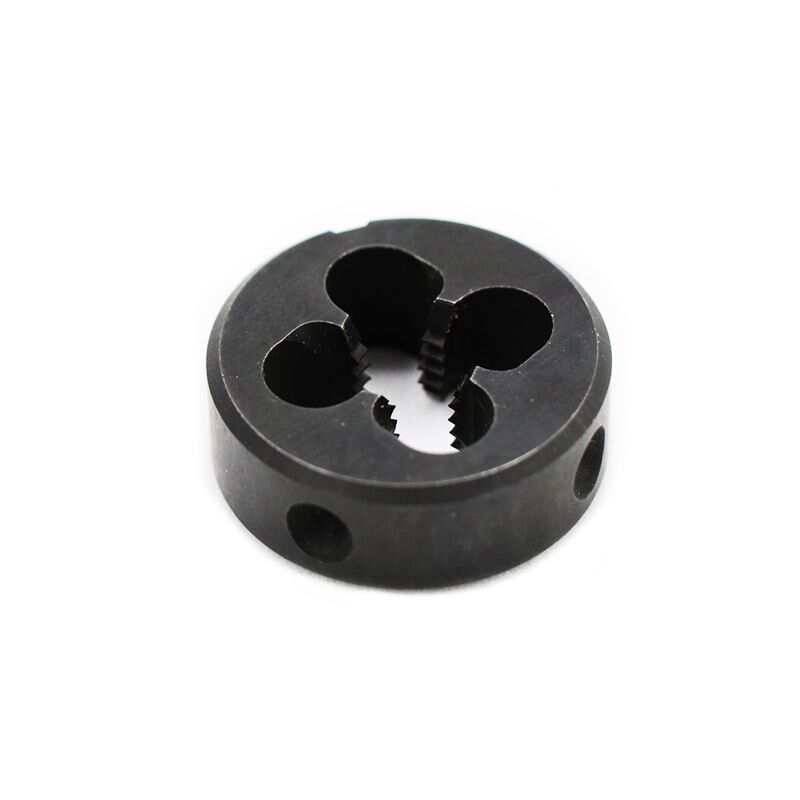

Black Nitrided Thread Dies Metric Imperial Wear Resistant Thread Tap Drill Bits Set

Premium Black Nitrided Threading Dies | Metric & Imperial UNC/UNF Series | Wear-Resistant Dies for Cast Iron & Alloy Steel

Problem: Surface Friction and Chip Welding

In high-volume external threading, excessive friction often leads to "chip welding," where metal particles fuse to the die’s cutting edges. This buildup destroys thread symmetry and results in "galled" surfaces, forcing operators to scrap expensive workpieces and replace tools prematurely. Standard dies also struggle with abrasive materials like cast iron, which grind down the sharp crests of the thread profile within a few cycles.

Cause: Insufficient Surface Hardness and Heat Retention

Standard HSS tools, while tough, lack the surface lubricity needed to repel "gummy" metal chips under high-pressure cutting conditions. Without a specialized barrier, the heat generated during threading causes molecular bonding between the workpiece and the tool's tooth flanks. The lack of a secondary hardening process means the tool's surface is vulnerable to the micro-abrasions caused by the silicates and carbon in industrial steels.

Solution: Advanced Plasma Nitriding Technology

Our Nitrided HSS Dies undergo a specialized thermo-chemical process that diffuses nitrogen into the surface of the HSS-M2 substrate. This creates a "black skin" with a surface hardness of over 70 HRC, significantly higher than standard high-speed steel tools. The nitrided layer acts as a permanent dry lubricant, reducing the coefficient of friction and allowing chips to glide through the gullets without adhering.

Technical Parameters (High-Performance Specs)

Application: Engineered for Abrasive Environments

Cast Iron & Ductile Iron: The ultra-hard surface resists the abrasive nature of carbon-rich casting, maintaining sharp crests for thousands of threads. High-Carbon Steel Production: Ideal for Grade 8.8 and 10.9 fasteners where high torque and heat would otherwise soften a standard tool. Automated Screw Machines: The self-lubricating properties ensure consistent performance in high-speed, 24/7 automated threading environments. Aluminum & Non-Ferrous Alloys: Prevents "galling" and built-up edge when threading soft, sticky metals that typically clog standard dies.

Selection Guide: Professional Integration

1. Material Identification: Look for the signature Matte Black finish. This indicates the nitride barrier is present for heavy-duty use.

2. Speed Adjustment: Nitrided tools can often run at 20-30% higher speeds than bright finish dies due to their superior heat resistance.

3. Lubrication Pairing: For best results, use a high-sulfur cutting oil; the nitrided surface holds the oil film better than polished steel.

4. Precision Fit: Ensure your rod diameter is correctly pre-sized; a nitrided die is less "forgiving" of oversized rods due to its extreme hardness.

Professional FAQ (Technical Support)

Q: Does the black nitrided layer wear off after sharpening?

A: Nitriding is a diffusion process, not just a coating. While the top layer is hardest, the nitrogen penetrates the steel, providing protection even after light wear.

Q: Can I use nitrided dies for Stainless Steel 316?

A: Yes. Nitriding significantly reduces the "stickiness" of stainless steel chips, although for maximum life in 316, we also recommend our Cobalt (M35) series.

Q: Is a nitrided die more brittle than a standard HSS die?

A: No. The core of the die remains the tough HSS-M2 substrate; only the surface is hardened, providing the perfect balance of core toughness and surface hardness.

Q: Why choose Nitrided over TiN (Gold) coating?

A: Nitriding is often more cost-effective for abrasive materials like cast iron and offers better resistance to "chipping" in intermittent cutting conditions compared to some PVD coatings.
