Professional 7-Inch Continuous Turbo Grinder | 3mm Thick Core Surface Prep Wheel

1. Problem: Deep Scratches and Chattering on Large Pours

• The Problem: When commercial contractors prepare a large concrete slab for thin-film epoxy, sealers, or high-gloss polishing, using aggressive double-row grinding wheels leaves deep gouges and swirl marks. Furthermore, standard grinding wheels use flimsy stamped-steel bodies that vibrate violently at high RPMs on a 7-inch diameter, causing the grinder to "chatter" and leave a rippled, uneven finish.

• The Result: Expensive concrete sealers and metallic epoxies fail to hide the deep scratch patterns left by the grinder. Contractors are forced to spend days going back over the floor with finer abrasives to fix the damage caused by heavy vibration and aggressive tooling.

2. Cause: Interrupted Cutting Action and Flimsy Tool Cores

• Micro-Bouncing: Segmented wheels with large gaps (like double-row designs) hit the concrete like a series of tiny hammers. This interrupted cutting action causes the tool to micro-bounce, leaving deep swirl marks.

• Core Deflection: A large 180mm steel plate experiences immense centrifugal force. If the steel body is thinner than 2.5mm, it flexes and warps under the heat and pressure of a 15-Amp grinder, destroying the flatness of the grind.

3. Solution: Spiral-Turbo Geometry and 3mm Heavy-Duty Body

• Continuous Turbo-Spiral Milling: Unlike double-row blocks, this wheel features a densely packed, angled "Turbo" segment design. This geometry ensures that the diamond matrix maintains 100% continuous contact with the concrete surface at all times. It acts as a high-speed milling cutter, shaving the high spots smoothly and leaving a swirl-free, uniform scratch pattern ideal for thin coatings or Step-1 concrete polishing.

• 3mm "Anti-Chatter" Steel Body: Engineered with a massive 3mm thick heavy-gauge steel core. This extreme structural rigidity acts as a vibration dampener. It completely absorbs the harmonic resonance of the angle grinder, preventing wheel deflection and ensuring the tool rides dead-flat across massive commercial warehouse floors.

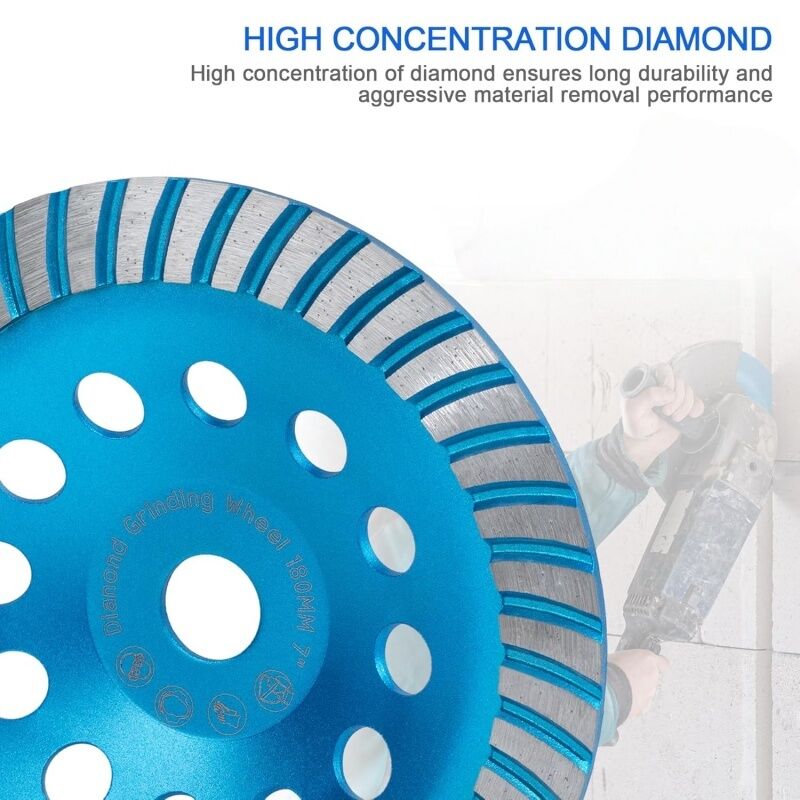

• Oversized 20mm x 5mm Segments: Built for industrial longevity, each angled segment features a massive 20mm radial height and a 5mm workable thickness. This high-concentration diamond volume ensures fast, smooth grinding while drastically improving the performance and efficiency of the tool over thousands of square feet.

4. Technical Specifications

5. Professional Industry Applications

• Concrete Polishing Preparation: The definitive "Step 1" metal-bond tool for opening the pores of troweled concrete before transitioning to resin polishing pads.

• Thin-Film Coating Prep: Smoothing rain-damaged concrete and preparing flawless, scratch-free substrates for thin-mil epoxies, urethanes, and clear concrete sealers.

• Decorative Masonry Finishing: Beveling, shaping, and smoothing the edges of large cast-concrete countertops, pre-cast architectural panels, and natural stone slabs.

6. Operation and Safety Guidelines

• Flat-Angle Grinding Technique: To maximize the smooth-finishing capabilities of the Turbo design, hold the 7-inch grinder as flat to the floor as possible (no more than a 5-degree tilt). Tilting the grinder too steeply will cause the outer edge to dig in and create trench marks.

• High-Volume Dust Extraction: The continuous milling action of the Turbo wheel creates ultra-fine concrete dust. You must pair this 180mm wheel with a dedicated 7-inch dust shroud and an industrial HEPA vacuum with a high CFM rating. The 10 large cooling holes in the steel body are designed specifically to pull air through the matrix to assist the vacuum.

• Tool Pairing: Due to the massive 3mm steel core and 7-inch diameter, this wheel is heavy. It must only be mounted on commercial large-frame angle grinders (15-Amp minimum) or dedicated walk-behind floor machines.

7. FAQ: Expert Technical Support

Q: I am removing thick carpet glue. Should I use this 7" Turbo wheel or a 7" Double-Row wheel?

A: Use the Double-Row wheel for thick, sticky glue. The Turbo wheel is designed for smooth concrete finishing and has tighter gaps between the segments. Thick, sticky mastics can clog the tight spiral grooves of a Turbo wheel. Once the glue is removed by the Double-Row, you can use this Turbo wheel to smooth the concrete perfectly flat.

Q: Will the 3mm thick steel body make my angle grinder heavy to hold?

A: Yes, the added weight is intentional. When grinding large floor areas, you want a heavy tool. The weight of the 3mm steel core combined with the weight of a large-frame grinder provides the natural downward pressure needed to grind concrete efficiently, saving your back and arms from having to physically press down.

Q: Can I use this wheel wet to keep the dust down?

A: Absolutely. While it features extensive cooling holes for dry use, running this Turbo wheel wet (with a water feed on a polishing machine) will completely eliminate airborne silica dust, keep the diamonds ice-cool, and extend the lifespan of the 5mm segments by up to 30%.

Q: Will this 7/8" (22.23mm) arbor fit my grinder that has a 5/8"-11 threaded spindle?

A: To fit a 7/8" unthreaded arbor onto a standard US 5/8"-11 threaded spindle, you simply use the backing flange and the standard locking nut that came included with your angle grinder. Ensure the nut is securely tightened before operation.
