Industrial Metric Hand Reamer Set | 1mm - 13mm Straight Flute (DIN 206 / H7)

1. Problem: The "Undersized" Drill Hole and Bearing Failure

• The Problem: Tool & die makers, engine rebuilders, and aerospace technicians frequently need to install precision press-fit bearings, brass bushings, or steel dowel pins. Standard twist drill bits naturally "walk" and tear the metal, leaving a rough, slightly undersized hole. If a machinist attempts to hammer a precision steel dowel into a standard drilled hole, the dowel will seize halfway in, gall the surrounding metal, or warp the workpiece entirely.

• The Result: Ruined engine blocks, seized bearings, out-of-spec manufacturing jigs, and wasted hours trying to manually sand or hone a hole to the correct dimension.

2. Cause: Drill Bit Dynamics and "Guesswork" Tooling

• Chatter and Tearing: Standard two-flute twist drills are designed for rapid material removal, not finishing. They leave microscopic ridges and cannot achieve the mirror-smooth cylinder required for hydraulic or rotating components.

• Non-Standardized Tooling: Cheap reamers lack strict manufacturing standards. If a reamer claims to be "6mm" but does not conform to an international tolerance grade (like H7), the resulting hole could be slightly too tight or too loose, leading to catastrophic mechanical vibration.

3. Solution: Certified DIN 206 Standards and H7 Tolerance

• Certified H7 Machining Tolerance: These straight-flute reamers are strictly finishing tools. Designed to shave only the final few thousandths of a millimeter of material, they are precision-ground to meet the strict ISO H7 Tolerance standard. This guarantees the hole will perfectly accept standard industrial slip-fits and light press-fits for dowel pins and bearings without binding.

• DIN 206 Form A Compliance: Every tool in this set is manufactured to exact DIN 206 specifications (the German Institute for Standardization requirements for straight-flute hand reamers). This ensures the square drive shank, the cutting flute length, and the micro-tapered starting chamfer are universally compatible with professional tap wrenches and industrial blueprints.

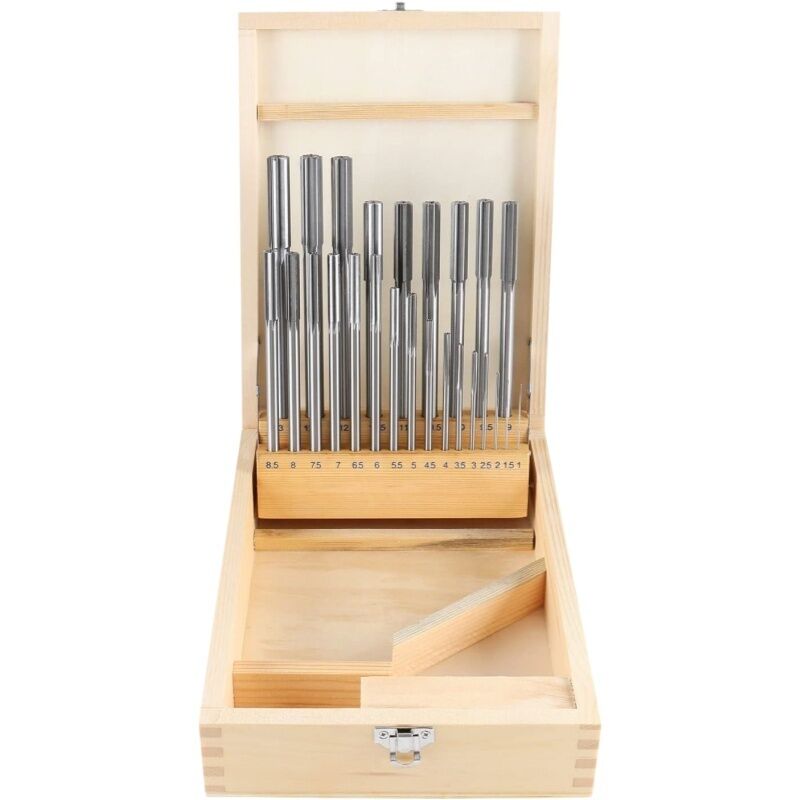

• 1.0mm to 13.0mm Master Matrix: Housed in a moisture-resistant wooden indexing case, this set provides a comprehensive size range from 1.0mm to 13.0mm. It includes the critical 0.5mm micro-step increments for the smaller sizes, ensuring the machinist always has the exact, standard-compliant diameter required for custom engine components or imported hardware.

• Premium M2 High-Speed Steel (HSS): The cutting edges (margins) are forged from industrial M2 HSS. They are exceptionally hard and wear-resistant, ensuring the reamer holds its exact H7 dimensional diameter even after hundreds of passes through cast iron or alloy steel.

4. Technical Specifications

5. Professional Industry Applications

• Engine Rebuilding & Automotive: The mandatory set for reaming out valve guides, piston pin bosses, and transmission casing dowel holes to exact factory specifications.

• Tool & Die Making: Creating flawless, high-tolerance alignment holes for steel dowel pins in custom injection molds and stamping dies.

• Custom Gunsmithing & Aerospace: Achieving mirror-finish tolerances on trigger assembly pins, hydraulic manifold ports, and custom pivot joints.

6. Operation and Safety Guidelines

• Never Turn Backwards: This is the golden rule of reamers. Whether you are cutting, pausing, or removing the tool from the hole, always turn it clockwise. Turning a reamer backwards (counter-clockwise) will instantly chip the brittle, razor-sharp cutting edges and ruin the tool.

• Pre-Drill Sizing: A reamer is not a drill; it cannot create a hole from scratch. The workpiece must be pre-drilled approximately 0.2mm to 0.4mm smaller than the final reamer size. (e.g., Use a 5.8mm drill bit before using the 6.0mm reamer).

• Use Heavy Cutting Fluid: Reaming generates significant friction. Always flood the hole with a high-quality, sulfurized dark cutting oil (for steel) to flush out the microscopic chips and ensure the desired mirror finish.

7. FAQ: Expert Technical Support

Q: What exactly does "H7 Tolerance" mean for my project?

A: "H7" is an international engineering standard. It means the hole will be exact to the nominal size, with a microscopic allowance slightly larger than the stated size (never smaller). For example, a 10mm H7 reamer cuts a hole between 10.000mm and 10.015mm. This is the exact mathematical tolerance required for a standard 10mm steel dowel pin to slide in tightly without getting permanently stuck.

Q: Can I put these DIN 206 straight-flute reamers into my power drill or drill press?

A: No. DIN 206 specifies these as Hand Reamers. They are designed with a slight starting taper and square shanks meant to be turned slowly by hand using a tap wrench. Putting them in a high-speed power drill will cause them to aggressively grab the metal, potentially snapping the tool or ruining the hole.

Q: Does this 1-13mm set include the half-millimeter sizes?

A: Yes, standard metric reamer sets in this range typically include critical half-step increments (like 1.5, 2.5, 3.5, 4.5, 5.5, 6.5, 7.5, 8.5, 9.5mm) to ensure you have the exact size needed for highly specific clearance holes and custom bushing fits.
