| Brand Name: | XRTOOLS |
| Model Number: | 1-3/4 |
| MOQ: | 200pcs |
| Price: | $1.18-20.98/pc |
| Delivery Time: | 45DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
The Problem: In high-volume CNC production environments, end mills are subjected to continuous, punishing cutting cycles. When machining medium-carbon steels or tough alloys hour after hour, the friction generates immense heat at the cutting edge. Uncoated high-speed steel tools absorb this heat directly into their core. Eventually, the tool exceeds its thermal threshold, losing its temper (hardness).
The Result: The cutting edge rapidly collapses, leading to sudden tool failure mid-cycle, ruined workpiece surface finishes, and severe dimensional inaccuracies caused by the thermal expansion of the overheated tool.
Direct Friction Transfer: Without a protective barrier, the abrasive friction of steel-on-steel cutting transfers 100% of the generated heat directly into the tool's substrate.
Premature Edge Softening: Even high-quality steel will begin to soften if the localized temperature at the cutting margin exceeds 500°C during aggressive, continuous milling.

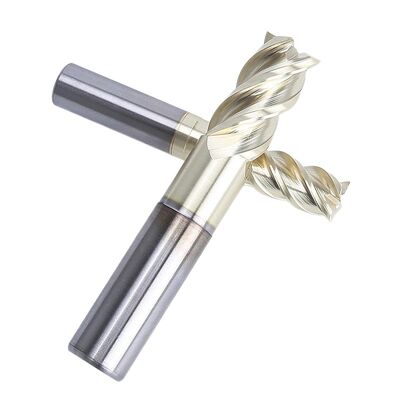

Titanium Nitride (TiN) Thermal Shielding: This XRTOOLS end mill is heavily armored with a premium Gold TiN (Titanium Nitride) PVD coating. This ceramic-like layer acts as an extreme thermal barrier. Instead of the tool absorbing the heat, the TiN coating forces the heat to shear off and evacuate into the metal chip. This keeps the tool core cool and extends cutting life by up to 300% compared to uncoated tools.
HSS-M35 (5% Cobalt) Substrate: Beneath the TiN armor lies a heavy-duty HSS-M35 core. The addition of 5% Cobalt provides exceptional "red hardness," ensuring that even if the tool experiences high-temperature spikes during heavy plunging or slotting, the structural integrity of the flutes will not deform.
4-Flute High-Rigidity Architecture: Engineered with four precision-ground flutes. This design maximizes the solid steel web thickness in the center of the tool, completely preventing tool deflection (bending) during heavy lateral side-milling. It guarantees a perfectly plumb, 90-degree wall and a mirror-smooth surface finish.
Enhanced Surface Lubricity: The TiN coating naturally lowers the coefficient of friction. This slick surface prevents microscopic metal particles from welding to the cutting edge (Built-Up Edge), ensuring consistent, repeatable tolerances across hundreds of identical parts.
| Specification Pillar | Detail | Industrial Benefit |
| Surface Armor | Gold TiN (Titanium Nitride) | Extreme thermal barrier; forces heat into the chip. |
| Material Base | Premium HSS-M35 (5% Cobalt) | High shock resistance and superior high-temp stability. |
| Flute Configuration | 4-Flute (Right Hand Spiral) | High core rigidity for chatter-free profiling and finishing. |
| Shank Architecture | Straight Cylindrical | Provides exact 360-degree clamping in precision collets. |
| End Geometry | Square End | Ideal for sharp 90-degree internal corners and facing operations. |
| Target Application | High-Volume General Production | The definitive workhorse for continuous steel milling. |
Automotive Component Manufacturing: The go-to continuous-production tool for profiling and facing forged steel connecting rods, transmission housings, and cast iron brake calipers.
General CNC Job Shops: An exceptionally versatile, long-lasting tool for machinists cutting a wide variety of structural steels, mild alloys, and cast metals in a single shift.
Tool & Die Maintenance: Reliable, rigid side-milling for squaring up heavy steel mold bases and custom alignment jigs.
Increase Your Surface Speed: The TiN coating is designed to handle heat. To fully utilize this tool, you can run it at surface speeds (RPM) approximately 20% to 30% faster than standard uncoated HSS end mills.
Optimize Coolant Delivery: While the TiN coating protects against heat, flooding the cutting zone with high-quality water-soluble coolant is highly recommended to flush out the hardened steel chips and prevent the tool from recutting them.
Side-Milling vs. Plunging: This 4-flute configuration is optimized for heavy side-loading (profiling). Avoid plunging straight down vertically unless ramping into the material at a shallow angle, as the thick center core does not evacuate chips vertically as efficiently as a 2-flute tool.
Q: How do I know when the TiN coating is worn out?
A: The gold TiN coating serves as an excellent visual wear indicator. As the tool is used, you will slowly see the gold color wear away at the very tips of the cutting margins, revealing the silver HSS-M35 steel underneath. Once the silver edge becomes highly visible and rounded, it is time to replace or regrind the tool.
Q: Is HSS-M35 with TiN coating better than Solid Carbide?
A: "Better" depends on your machine. Solid carbide is much faster but extremely brittle. If you are using an older CNC machine, a manual Bridgeport mill, or your setup has slight vibrations, solid carbide will shatter instantly. HSS-M35 provides the necessary flexibility (shock absorption) to survive those vibrations, while the TiN coating bridges the gap by offering carbide-like surface hardness.
Q: Can I use this gold TiN end mill on Aluminum?
A: It is not recommended. Titanium Nitride has a chemical affinity for aluminum, meaning soft aluminum will actually stick to the gold coating and clog the tool. For aluminum and other soft non-ferrous metals, you should always use an uncoated (Bright Finish) or ZrN-coated end mill.
