Industrial Metal & Plastic Edge Deburrer | Heavy-Duty Hole Finishing Kit

1. Problem: Dangerous Burrs and Inefficient Filing

• The Problem: Whenever metal, plastic, or PVC is drilled, milled, or cut, it leaves behind sharp, jagged edges known as "burrs." Leaving these burrs intact creates severe laceration hazards for assembly workers and prevents precision components from fitting together smoothly.

• The Result: Attempting to remove these burrs with sandpaper or a flat file is incredibly slow, often scratches the surrounding surface finish, and completely fails when trying to clean the inside of a small drilled hole or curved pipe.

2. Cause: Rigid Tools on Curved Surfaces

• Lack of Articulation: Standard files and scrapers are rigid. When forced around a circular hole or an irregular curved profile, they chatter and dig unevenly into the material.

3. Solution: 360-Degree Auto-Pivoting and Multi-Handle Ergonomics

• 360° Swivel Blade Dynamics: The XRTOOLS deburring system utilizes a free-spinning blade housing. As you pull the tool along an edge, the curved HSS blade automatically pivots and aligns itself perfectly to the contour of the metal or plastic. It effortlessly glides around circular holes and irregular curves, shearing off the burr in one continuous, smooth ribbon without digging into the base material.

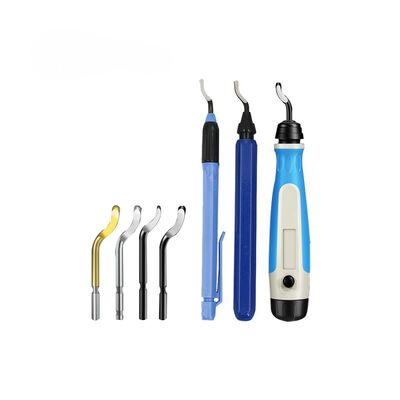

• Versatile 3-Handle Matrix: This master kit provides three distinct handle architectures for any shop environment:

  • Heavy-Duty Ergonomic Handle (Blue/Grey): Features a quick-release blade collar and a thick, rubberized grip for maximum torque and hand comfort during all-day production deburring.

  • Hexagonal Machinist Handle (Dark Blue): A solid, anti-roll hexagonal profile that provides tactile feedback for delicate edge work and stays put on vibrating machine tables.

  • Slim Pen-Style Handle (Light Blue): Features a pocket clip for engineers, inspectors, and maintenance technicians who need a quick touch-up tool always at the ready.

• Multi-Material Blade Assortment: Includes premium High-Speed Steel (HSS) blades designed for deep cuts in aluminum and plastics, along with a specialized TiN-Coated (Gold) Blade that provides extreme surface hardness for deburring tough abrasive materials like cast iron and stainless steel.

4. Technical Specifications

5. Professional Industry Applications

• CNC Machining & Fabrication: Rapidly breaking sharp edges and chamfering freshly drilled holes on aluminum billet parts and steel brackets right as they come off the machine.

• Plumbing & HVAC Fitting: Instantly removing internal burrs from freshly cut copper pipes, PVC conduits, and brass fittings to ensure a flawless seal before soldering or gluing.

• 3D Printing & Prototyping: The ultimate post-processing tool for carving away "elephant foot," support material nubs, and rough edges on PLA, ABS, and PETG printed parts.

6. Operation and Safety Guidelines

• The "Pull" Technique: Deburring tools are designed to be pulled, never pushed. Hold the blade against the edge at roughly a 45-degree angle and pull smoothly toward you. Let the pivoting head do the work; do not force the blade to stay rigid.

• Match the Blade to the Material: Use the standard silver/black HSS blades for soft, gummy materials like aluminum, brass, and plastics. Switch to the Gold TiN-Coated blade when working with harder structural steels to preserve the cutting edge.

• Blade Replacement: For the heavy-duty handle, simply push down on the black release collar at the neck of the tool to instantly drop the old blade and snap a new one in place.

7. FAQ: Expert Technical Support

Q: Do I need to sharpen these blades?

A: No. These are designed as industrial consumable blades. Because of their complex curved geometry and extreme hardness, they are not meant to be manually sharpened. Once a blade stops shearing cleanly, simply snap in a fresh replacement blade from the kit.

Q: Will this tool work on the inside of a very small hole?

A: Yes. The offset curve of the swivel blade is specifically designed to reach inside drilled holes. As long as the hole is larger than the diameter of the blade's neck (typically anything over 3mm or 1/8"), you can insert the tip, twist your wrist, and cleanly chamfer the inside edge.

Q: Why does the blade feel "loose" in the handle?

A: That is an intentional, critical design feature. The blade must have enough rotational play to spin freely 360 degrees. This "looseness" is what allows the blade to automatically track the shape of the edge you are cutting without gouging the material.
