| Brand Name: | XRTOOLS |
| Model Number: | 20mm |
| MOQ: | 200pcs |
| Price: | $1.18-20.98/pc |
| Delivery Time: | 45DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
The Problem: When CNC operators machine non-ferrous materials like aerospace aluminum, brass, or soft low-carbon steels, these "gummy" metals tend to melt under friction. The molten material instantly welds itself to the cutting edges of the end mill—a catastrophic failure known as Built-Up Edge (BUE). Once the metal welds to the tool, the end mill stops cutting and starts plowing, which aggressively chatters, snaps the tool, and completely destroys the workpiece's surface finish.
The Result: Scrapped expensive aluminum billets, broken solid carbide tooling, and massive production delays due to constant tool changeovers and machine jams.
The Coating Trap: Many machinists mistakenly use high-heat TiN or TiAlN coated tools for aluminum. These coatings inherently round the cutting edge at a microscopic level. While great for hard steel, a rounded edge generates massive friction and heat in soft aluminum, accelerating the melting and welding process.
Chip Packing: Using a 4-flute tool on soft metal leaves nowhere for the massive, stringy chips to go, causing them to pack into the flutes and snap the tool.

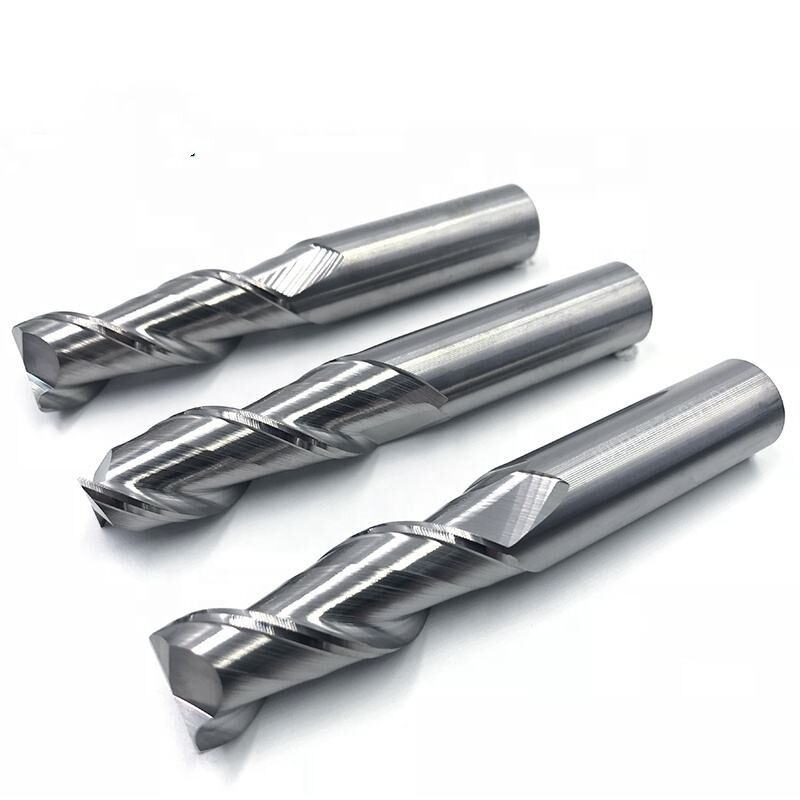

Uncoated "Bright Finish" Supremacy: This XRTOOLS end mill features a polished Bright Finish (uncoated). Bypassing the coating process allows us to grind an aggressively acute, razor-sharp cutting edge. This surgical sharpness cleanly shears soft metals like aluminum and brass without generating the excessive friction that causes material welding.
2-Flute High-Volume Evacuation: Engineered with a deep-valley 2-flute architecture. This maximizes the "gullet" space, allowing the massive, stringy chips generated by high-speed aluminum milling to curl and evacuate instantly without packing or jamming.
HSSE (Cobalt-Enriched) Core: Manufactured from premium High-Speed Steel enriched with Cobalt (HSSE / M35). This provides the perfect balance: it is significantly tougher and more shock-resistant than brittle solid carbide, allowing for aggressive feed rates, while the cobalt provides the thermal stability needed for continuous production runs.
Certified DIN 844 Standard: Precision-ground to the strict German DIN 844 manufacturing standard for cylindrical shank end mills. This guarantees absolute concentricity and universally flawless fitment into standard precision ER collets and milling chucks.
| Specification Pillar | Detail | Industrial Benefit |
| Manufacturing Standard | DIN 844 | Certified global standard for dimensional accuracy and concentricity. |
| Material Base | Premium HSSE (Cobalt) | High shock absorption and superior wear resistance. |
| Surface Finish | Bright Finish (Uncoated) | Microscopically sharp edges prevent metal welding (BUE). |
| Flute Configuration | 2-Flute (Center-Cutting) | Plunge-capable; maximizes chip evacuation space. |
| Shank Type | Straight Cylindrical | Provides uniform clamping pressure in precision ER collets. |
| Target Material | Aluminum, Brass, Copper, Plastics | Optimized for soft, non-ferrous, and "gummy" materials. |
Aerospace & Automotive: Rapid roughing and precision slotting of lightweight aluminum chassis components, engine manifolds, and custom heat sinks.
Rapid Prototyping: Ideal for CNC job shops doing fast turnaround milling on acetal plastics (Delrin), acrylics, and brass functional prototypes.
General Machine Shops: The "go-to" reliable tool for manual Bridgeport-style milling machines when aggressive, chatter-free plunge cutting is required.
Maximize RPM, Push the Feed: Because this is a 2-flute tool cutting soft materials, you must run it at a high RPM and a relatively high feed rate. Feeding it too slowly will cause the tool to rub rather than cut, generating unnecessary heat.
Flood Coolant Recommended: While the uncoated geometry prevents welding, applying a continuous stream of mist coolant or water-soluble flood coolant will flush the chips out of the deep flutes and guarantee a mirror-like surface finish on aluminum parts.
Plunge Cutting Capability: Because this is a center-cutting 2-flute design, it can be used to plunge straight down into the workpiece (like a drill bit) to initiate a closed pocket or slot.
Q: Why shouldn't I just buy a gold (TiN) coated end mill instead? Doesn't the coating make it better?
A: Coating makes a tool better for steel. However, titanium-based coatings have an affinity for aluminum—meaning aluminum actually wants to stick to it chemically. For non-ferrous metals, a razor-sharp, uncoated Bright Finish is universally superior for preventing chip welding and ensuring a clean cut.
Q: Is this tool made of solid carbide or High-Speed Steel?
A: This tool is forged from HSSE (Cobalt-Enriched High-Speed Steel). Solid carbide is extremely hard but very brittle, requiring highly rigid, expensive CNC machines to prevent snapping. HSSE offers superior ductility (shock resistance), making it incredibly durable for interrupted cuts, heavy slotting, and use in manual milling machines where vibrations are present.
Q: Can I use this end mill in my standard drill press?
A: No. End mills are designed to cut laterally (sideways). A standard drill press chuck and spindle are only designed for vertical thrust. Using an end mill in a drill press will cause the chuck to loosen, drop the tool, and permanently ruin the drill press bearings. Always use a dedicated milling machine or CNC router.
