| Brand Name: | XRTOOLS |
| Model Number: | 15mm |
| MOQ: | 500PCS |
| Price: | $0.8-12/PCS |
| Delivery Time: | 25-30 days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
The Problem: When installing high-precision components—such as specialized sensors or aviation-grade connectors—a standard drill bit often creates "oval" or slightly irregular holes due to tool flex. In thin-walled enclosures, this distortion prevents a vacuum-tight or waterproof seal.
The Result: Compromised structural integrity and failed pressure tests. For professionals, this means costly rework and the potential for electrical shorts if the mounting interface is not perfectly flush.
Rotational Stress: Standard multi-part hole saws (arbor + saw) introduce "stacking tolerances." Even a fraction of a millimeter of play at the arbor connection results in significant vibration at the cutting edge.
Point Overload: Without specialized guidance, the transition from the pilot drill to the saw teeth creates a sudden spike in torque, which often causes the material to deform or "grab" the tool.

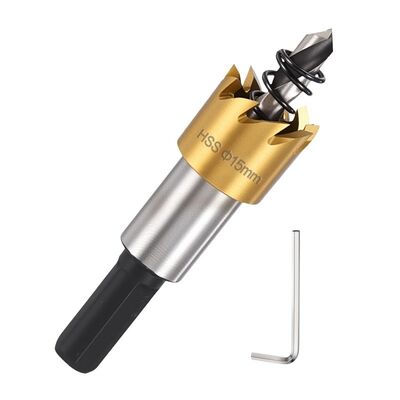

Monoblock Construction: Our 15mm Industrial Series features a one-piece integrated design forged from M2 High-Speed Steel. By eliminating the arbor connection, we ensure absolute concentricity with a Total Indicator Runout (TIR) ≤ 0.10mm, providing a perfectly circular hole every time.
Precision-Graduated Triple-Edge Teeth: The cutting teeth are ground with a triple-stage geometry. This allows the tool to shave the material in layers rather than gouging it, reducing the physical strain on the workpiece and the drill motor.
Integrated Depth Management: Every saw includes a precision Safety Stopper (Flange). This mechanical limit prevents the tool from plunging past the cut, protecting any sensitive internal wiring or components located behind the panel.
| Technical Pillar | Specification Detail | Industrial Benefit |
| Material Grade | HSS M2 (W6Mo5Cr4V2) | Extreme Wear Resistance: Maintains HRC 64-66 hardness. |
| Boring Accuracy | TIR (Runout) ≤ 0.10mm | Precision Fit: Optimized for PG9/PG11 glands and 15mm sensors. |
| Tooth Geometry | Triple-Edge Fully Ground | Surface Quality: Delivers a machine-finished, burr-free edge. |
| Shank System | Fixed Hex Shank | Torque Stability: Prevents rotation slippage in industrial chucks. |
| Cycle Efficiency | High-Tension Ejection Spring | Speed: Instant slug ejection for high-volume production. |
Medical Device Fabrication: Precision boring in stainless steel medical carts and equipment housings where hygiene-grade, burr-free holes are mandatory.
Aerospace Electronics: The ideal tool for mounting cockpit instrumentation and specialized sensors in thin-walled aluminum and composite alloys.
Advanced Electrical MRO: Precise entries for specialized cable glands and waterproof push-buttons in industrial automation cabinets.
Material Versatility: Optimized for Stainless Steel (≤ 2.5mm), Aluminum Profiles, Brass, and Fiber-Reinforced Plastics (FRP).
High-Cycle Durability: Forged from solid M2 steel, this tool can be professionally resharpened to extend its service life, making it a more sustainable choice for high-volume workshops.
RPM Optimization: For maximum longevity in 304 Stainless Steel, maintain 400 - 500 RPM. For aluminum or mild steel, the tool is stable up to 900 RPM.
Q: Why is 15mm a critical size for industrial MRO?
A: The 15mm diameter is specifically engineered to provide the exact clearance needed for high-end industrial connectors and sensors where a standard 14mm is too small and 16mm creates too much "play" for a secure seal.
Q: Does this tool require a pilot hole?
A: No. The integrated 135° split-point center drill acts as its own pilot, ensuring instant positioning and preventing "walking" on polished metal surfaces.
Q: How does the ejection spring handle "sticky" materials like aluminum?
A: The high-tension compression spring is designed to exert constant outward pressure on the slug. Even with "sticky" materials, the spring combined with proper lubrication ensures the core is ejected the moment the cut is finished.
Hardness Profile: Vacuum-hardened to HRC 64-66 for professional-grade performance in high-tensile metals.
Manufacturing Standard: Every unit undergoes automated concentricity testing to ensure the highest boring accuracy in the category.
Safety Protocol: The integrated safety flange is an essential feature for professionals working in "live" environments where internal components must be protected from over-penetration.
