19.5MM Hole Saw HSS M35 Cobalt Bi-Metal Cutter Bit For Wood

1. Problem: Edge Tearing and Inaccurate Tolerances in Sheet Metal

• The Problem: When drilling precise 19.5mm openings in thin-walled stainless steel or aluminum enclosures, standard multi-part hole saws often suffer from "wobble" and "edge-tearing." This results in jagged, oversized holes that fail to secure industrial glands or sensors properly.

• The Result: Poor concentricity leads to expensive material waste and requires significant secondary deburring work, increasing labor costs and compromising the professional finish of the project.

2. Cause: Mechanical Flex and Chip Accumulation

• Body Flex: Traditional bi-metal saws have a flexible body that can deform under high RPMs, causing the cut to "walk" off-center.

• Heat Soak: Without a specialized cutting angle, friction heat quickly softens the tooth tips, causing the metal to "smear" rather than chip away.

• Slug Jamming: In high-speed production, the metal core (slug) often becomes jammed inside the saw cup, forcing the operator to stop and manually clear the tool.

3. Solution: The Integrated HSS Engineering Advantage

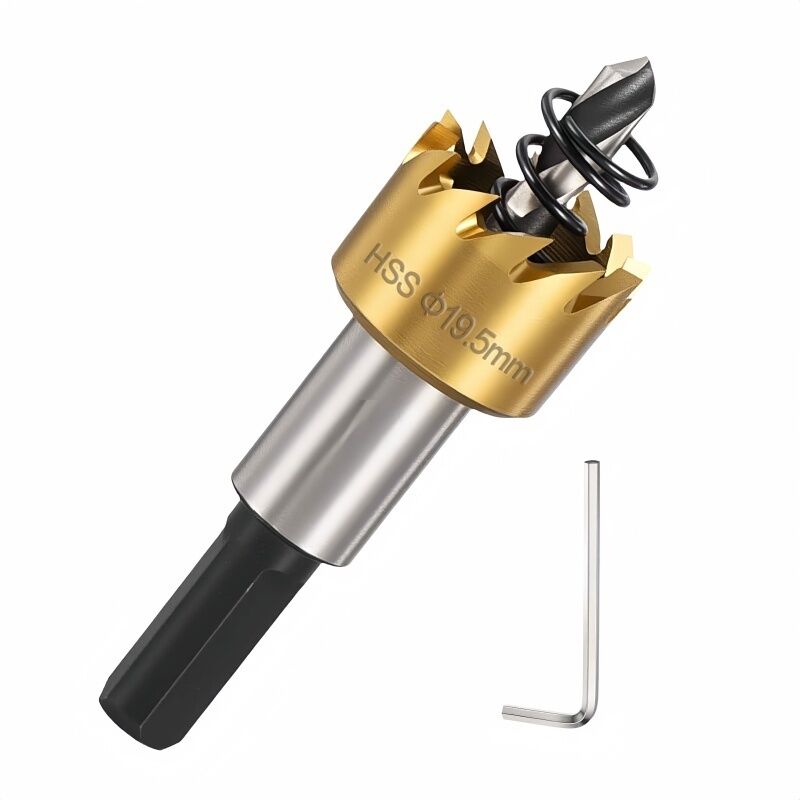

• One-Piece Precision Grinding: This Φ19.5mm Master Series is fully ground from a single solid piece of HSS (M2 Grade). This eliminates the flex found in multi-part tools, ensuring a Total Indicator Runout (TIR) ≤ 0.10mm for perfectly calibrated holes.

• Automatic Ejection System: The center pilot drill is equipped with a heavy-duty Ejection Spring. This automatically pops the metal slug out the moment the cut is complete, allowing for rapid, continuous operation without downtime.

• Triple-Edge Tooth Geometry: The teeth feature a precision-ground triple-edge profile that breaks chips into smaller segments, facilitating faster removal and reducing the torque required from the drill motor.

4. Technical Specifications (Industrial Standards)

5. Professional Industry Applications

• Electrical Control Panels: The primary tool for boring precision entries for cable glands and waterproof connectors in stainless steel enclosures.

• Automotive Fabrication: Precision boring in aluminum body panels and thin-walled chassis components for accessory mounting.

• HVAC & Cleanroom Systems: Ideal for installing sensors and small-bore piping in high-precision ventilation ducting where burr-free finishes are mandatory.

6. Selection & Operation Guide

• Material Compatibility: Excellent for Stainless Steel (≤ 2mm), Mild Steel (≤ 5mm), Aluminum, Copper, and high-strength Plastics.

• Speed Management: For 304 Stainless Steel, maintain a speed of 250 - 350 RPM. For aluminum or mild steel, you can increase to 500 - 600 RPM.

• Lubrication Protocol: To maximize tool life, always use a specialized cutting oil. This prevents "galling" and ensures the HSS teeth remain sharp for hundreds of repetitive cuts.

7. FAQ: Expert Technical Support

• Q: Why choose the 19.5mm diameter specifically?

  • A: This diameter is the industrial standard for specific electrical fittings and non-standard sensors where a 19mm hole is too tight and a 20mm hole is too loose.

• Q: Is the center drill replaceable?

  • A: Yes. The center drill is secured by a grub screw on the side of the body. If the pilot drill dulls, it can be easily replaced using the included hex key.

• Q: Can I use this with a cordless impact driver?

  • A: It is recommended to use a Standard Drill/Driver mode. Impact mode can shatter the high-hardness HSS teeth. Always use a constant, steady RPM for the best results.

8. Technical Quality & Trust Information

• Hardness Standard: Fully vacuum-hardened to HRC 64-66 for professional-grade edge retention.

• Manufacturing Precision: Fully ground construction ensures consistent concentricity across every tool produced.

• Safety Compliance: Built-in safety stopper (flange) prevents unintended damage to internal equipment during boring.
