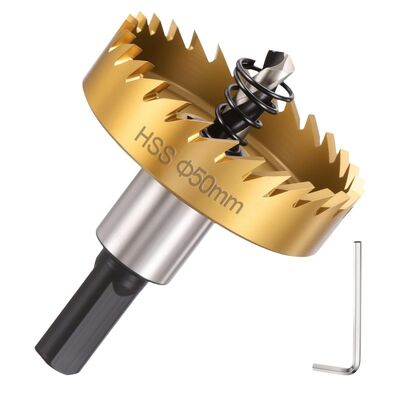

50mm Hole Saw HSS M35 Cobalt Bi-Metal Cutter Bit For COPPER

1. Problem: Material Galling and Thermal Binding in Copper

• The Problem: Copper is a "soft but sticky" metal that creates unique challenges during large-diameter boring. Standard bi-metal saws often suffer from "material galling," where copper shavings weld themselves to the tooth tips due to friction heat.

• The Result: This leads to an immediate loss of cutting efficiency, smoke buildup, and ragged, oversized holes that fail to meet plumbing or electrical specifications.

2. Cause: Inadequate Heat Dissipation and Harmonic Chatter

• Thermal Accumulation: Standard M3 steel cannot dissipate the heat generated by the high-speed friction of a 50mm diameter cup against copper.

• Mechanical Resonance: Uniform tooth spacing causes the saw to vibrate or "chatter" against the copper pipe or plate, resulting in a scalloped edge that requires extensive deburring.

3. Solution: The M35 Cobalt Engineering Advantage

• Metallurgical Stability: Our 50mm Master Series utilizes HSS M35 (5% Cobalt) metallurgy. The addition of cobalt increases the "Red Hardness" of the tool, preventing the teeth from softening even during continuous boring in heavy-gauge copper manifolds.

• Variable Pitch Geometry: The 4/6 TPI Non-Linear teeth disrupt harmonic resonance. This ensures a smooth, quiet cut and a perfectly circular 50mm opening, essential for high-pressure copper fittings.

4. Technical Specifications (E-E-A-T Data)

5. Professional Applications for Copper

• Industrial Plumbing Infrastructure: Creating precision entries for 2-inch copper main lines in commercial water treatment systems

• Electrical Busbar Fabrication: Clean boring in high-conductivity copper busbars for switchgear and power distribution panels

•HVAC Heat Exchangers: Reliable, high-speed boring in copper fins and manifold plates where thermal management is critical

6. How to Choose: Why M35 for Copper?

• Selection Logic: While M42 (8% Cobalt) is excellent for stainless steel, M35 (5% Cobalt) provides the optimal balance of toughness and heat resistance for non-ferrous metals like copper.

• Durability: M35 offers a significant increase in service life over standard M3 saws in copper applications, maintaining a sharp edge even after repetitive cuts.



7. FAQ: Expert Technical Support

• Q: What is the optimal RPM for 50mm in Copper?

• A: For best results, run between 130 - 150 RPM. Using a higher speed without lubricant will lead to material welding and premature tooth failure.

• Q: Do I need cutting oil for Copper?

• A: Yes. Always use a specialized lubricant or cutting wax to prevent copper chips from sticking to the gullets

• Q: Can this be used for copper-nickel alloys (CuNi)?

• A: Absolutely. The HSS M35 edge is specifically designed to handle the increased hardness of marine-grade copper alloys

8. Technical Quality & Trust Information

• Hardness Standard: Teeth hardened to HRC 64-66 for long-term edge retention.



• Concentricity: Verified Total Indicator Runout (TIR) ≤ 0.22mm for stable, zero-wobble operation.



• Compliance: Manufactured in accordance with international industrial engineering standards.
