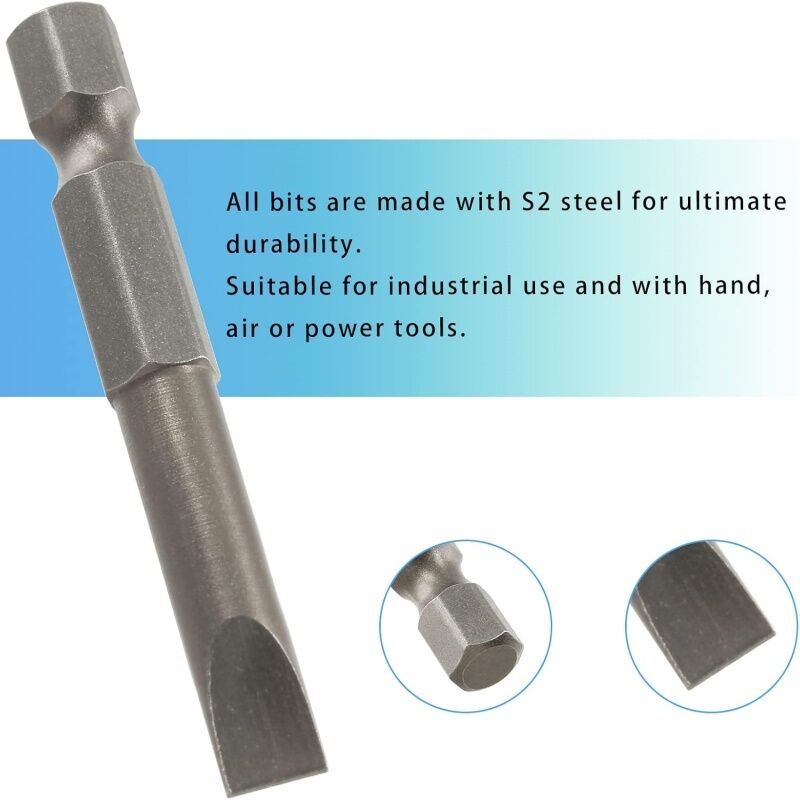

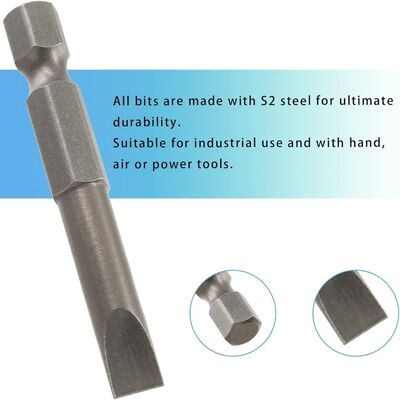

Professional 2-Inch Heavy-Duty Flathead | Automotive & HVAC S2 Steel Insert Bit

1. Problem: The "Worm-Drive Slip" and Punctured Hoses

• The Problem: Automotive mechanics and heavy HVAC installers frequently tighten large, high-torque worm-drive hose clamps (Jubilee clips) on radiator hoses and metal ducting. When a standard, sharp-cornered flathead bit is used under high pressure, the bit frequently slips out of the slot sideways. Because the operator is pushing hard, the drill violently plunges forward, plunging the razor-sharp corners of the flathead bit directly into the expensive silicone radiator hose, or worse, into the operator's stabilizing hand.

• The Result: Catastrophic fluid leaks from punctured hoses, ruined HVAC ducting, serious job-site lacerations, and hours of unpaid labor replacing parts destroyed by a slipping tool.

2. Cause: Sharp Geometries and Improper Sizing

• Razor-Sharp Flanges: Standard slotted bits are stamped with aggressive, 90-degree right angles on the outer edges of the blade. These act like chisels when the bit slips off a fastener.

• Undersized Tooling: Using an SL4.0 or SL5.0 bit on a heavy-duty hose clamp leaves too much empty space in the slot, drastically increasing the likelihood of a violent lateral slip.

3. Solution: SL6.0 Exact-Match and Anti-Gouge Edges

• The Hose-Clamp Standard (6.0mm): The SL6.0 blade measures exactly 6.0mm wide, which is the international geometric standard for the slots on heavy-duty automotive and industrial worm-drive hose clamps. This provides 100% edge-to-edge contact, securely locking the bit into the fastener to prevent slipping under extreme torque.

• Anti-Gouge Radiused Corners: To eliminate the puncture hazard, the extreme outer corners of this SL6.0 blade are precision-machined with a micro-radius (slightly rounded off). If a high-torque slip does occur in a greasy engine bay, the blunt, radiused edges will glance harmlessly off the rubber cooling hose rather than slicing through it.

• Massive S2 Steel Forging: The SL6.0 is a brute-force tool. Forged from a thick profile of premium S2 shock-resisting alloy, the 6.0mm blade easily withstands the heavy rotational torque of breaking loose rusted chassis bolts and seized machinery screws without the tip shattering.

4. Technical Specifications

5. Professional Industry Applications

• Automotive Maintenance: The absolute safest bit for tightening large coolant hose clamps, intake boot clamps, and removing seized chassis screws.

• Heavy HVAC & Plumbing: Flawlessly securing heavy-gauge ductwork banding, large manifold valves, and cast-iron pipe connectors.

• Industrial Machinery: A heavy-duty flathead capable of handling the raw torque required to maintain manufacturing line equipment and agricultural machinery.

6. Operation and Safety Guidelines

• The "Socket Alternative" Check: Many heavy-duty hose clamps feature a hybrid screw head (slotted in the center, but with an outer hex rim). While this SL6.0 bit is optimized for the slot, if you have clear access, using a dedicated hex nut-setter (usually 5/16" or 8mm) is inherently safer than any flathead bit. Use this SL6.0 bit when space restrictions prevent a thick socket from fitting over the clamp.

• Clean the Slot: Engine bays are dirty. If the screw slot is filled with hardened grease or rust, the SL6.0 bit cannot seat to its full depth. Scrape the slot clean before applying torque to prevent "cam-out."

• Impact Driver Warning: While the S2 steel can survive an impact driver, using an impact hammer on a slotted hose clamp will almost instantly strip the worm-gear threads. Always use a manual hand ratchet or a power drill set to a low-torque clutch setting.

7. FAQ: Expert Technical Support

Q: Why not make the blade even wider, like an SL8.0, for more strength?

A: An SL8.0 is incredibly strong, but it is physically too wide for standard automotive clamps. The edges of an 8mm blade would overhang the screw head, snagging on the metal banding of the clamp and preventing the screw from turning. SL6.0 is the exact maximum width for these specific applications.

Q: Can I use this bit as a pry bar to remove car trim panels?

A: Technically, the thick S2 steel of an SL6.0 is very strong, and mechanics do it all the time. However, using a precision-milled screwdriver bit for lateral prying voids its primary purpose. Prying can bend the shaft or chip the tip, ruining its ability to grip screws properly.

Q: What does the "radiused corner" actually look like?

A: Instead of a sharp, 90-degree right angle at the extreme left and right edges of the flat blade, the corners have been microscopically smoothed down into a gentle curve. It does not affect the gripping power inside the slot, but it acts as a safety bumper against soft materials.
