Industrial 9-Piece Metric Reamer Set | 2mm-10mm H8 Tolerance Straight Flute

1. Problem: The "Fractional Gap" in Metric Assembly

• The Problem: Toolmakers, robotics engineers, and machinists frequently assemble components using standard metric dowel pins, linear motion shafts, and bearings ranging from a microscopic 2mm up to a heavy-duty 10mm. Relying on standard twist drills leaves holes that are oversized, out-of-round, and scored with chatter marks. If a machinist is missing even a single metric size in their finishing arsenal, production stops entirely because a 5mm steel dowel will not press-fit securely into a poorly drilled hole.

• The Result: Sloppy mechanical joints, out-of-tolerance bearing housings, and scrapped workpieces due to the inability to achieve a consistent metric press or slip fit across various component sizes.

2. Cause: Tooling Fragmentation and Sub-Standard Tolerances

• Incomplete Tool Matrices: Buying individual reamers leads to gaps in a machinist's tooling library. Missing a specific micro-size (like 2mm or 3mm) forces operators to use improvised, inaccurate methods to finish a hole.

• Drill Bit Dynamics: Drill bits are designed purely for material removal. They inherently "walk" and cannot produce the mathematically perfect cylindrical geometry required for high-end mechanical assemblies.

3. Solution: The H8 Metric Matrix and Straight-Flute Geometry

• Unbroken 2mm-10mm Matrix: This 9-piece master set provides an unbroken, sequential range of the most critical metric sizes (2, 3, 4, 5, 6, 7, 8, 9, and 10mm). This ensures the machinist always has the exact diameter required to finish any standard metric locating hole on the assembly floor.

• Certified H8 Machining Tolerance: Every reamer in this set is precision-ground to the international H8 tolerance class (as stamped directly on the tool shanks). This specific tolerance provides the perfect micro-allowance for standard dowel pins and shafts to achieve a flawless, vibration-free press or transition fit.

• Straight-Flute Machine Architecture: Engineered with straight flutes and perfectly cylindrical round shanks. These are designed to be gripped in high-precision machine collets (ER collets) or lathe chucks. The straight flute geometry prevents the tool from "pulling" itself into the workpiece, offering absolute control over the feed rate and leaving a mirror-smooth finish.

• Premium HSS Forging: Forged from industrial High-Speed Steel. The cutting margins possess exceptional wear resistance, maintaining their exact H8 dimensional accuracy through hundreds of cycles in aluminum, brass, cast iron, and mild steel.

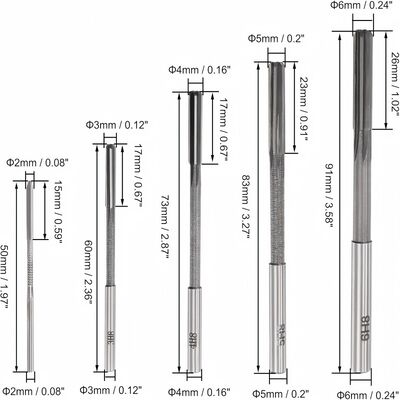

4. Technical Specifications

5. Professional Industry Applications

• Robotics & 3D Printing Post-Processing: The ultimate set for opening up 3D-printed or machined chassis holes to accept precision linear rods, stepper motor shafts, and brass bushings.

• Tool & Die Manufacturing: Essential for machining accurate alignment holes for steel dowel pins in injection molds and custom stamping dies.

• Automotive Customization: Reaming customized throttle body linkages, carburetor jets, and precision aluminum mounting brackets.

6. Operation and Safety Guidelines

• Collet Chuck Recommendation: Because these reamers feature perfectly round shanks, they should ideally be held in an ER collet chuck on a milling machine or lathe. Using a worn, three-jaw drill chuck can cause runout (wobble) and ruin the H8 tolerance of the hole.

• Pre-Drill Sizing: Reamers cannot drill holes. You must pre-drill the hole slightly undersized. For these metric sizes, pre-drill the hole approximately 0.2mm to 0.3mm smaller than the final reamer size to allow the flutes to shave the material properly.

• Lubrication is Mandatory: Friction destroys the H8 cutting margins. Always flood the hole with high-quality cutting oil (for steel) or tapping fluid (for aluminum) before feeding the reamer into the workpiece.

7. FAQ: Expert Technical Support

Q: Are these meant to be used by hand with a wrench?

A: While they can be carefully turned by hand if you have a tap wrench that securely grips round shanks, these are technically "Chucking Reamers." The round shanks are optimized to be gripped by a machine chuck (like a drill press, lathe, or mill) operating at a slow, controlled RPM.

Q: What does the "H8" stamped on the tool mean?

A: "H8" is the international engineering tolerance class. It indicates that the reamer is ground to cut a hole exactly at the nominal size, with a microscopic variance that is strictly positive (+). This ensures a standard metric pin will fit snugly without binding or getting permanently stuck.

Q: Can I use this straight flute reamer on a hole that has a keyway cut into it?

A: No. If the hole has a cross-hole, keyway, or interruption, a straight flute reamer will catch on the edge of the gap and chip the tool. For interrupted holes, you must use a spiral flute reamer. These straight flutes are designed for solid, continuous cylindrical holes.
