Industrial Milling Cutter Master Set | 3mm-20mm TiN Coated Endmills (Wooden Case)

1. Problem: The "Tooling Changeover" Bottleneck

• The Problem: In precision CNC machining and manual milling, operators constantly switch between different cutting strategies. Plunge cutting and deep slotting require high-clearance 2-flute end mills to evacuate heavy chips. Conversely, side-milling and fine surface finishing require rigid 4-flute end mills to prevent chatter and leave a smooth finish. When machinists have to source these from scattered, mismatched tool bins, it leads to massive setup delays, incorrect tool pairing, and compromised workpiece tolerances.

• The Result: Wasted machine time, premature tool burnout from using the wrong flute count for the wrong application, and poor surface finishes on high-value metal components.

2. Cause: Fragmented Libraries and Thermal Wear

• Incomplete Tooling Matrices: Buying individual end mills leads to a fragmented shop floor. An operator might have a 10mm 2-flute but lack the matching 10mm 4-flute for the final finishing pass.

• Thermal Degradation: Uncoated raw High-Speed Steel (HSS) loses its cutting edge rapidly when milling tough alloy steels, as the friction generates extreme localized heat that ruins the tool's temper.

3. Solution: Hybrid Dual-Geometry and TiN Thermal Armor

• The Dual-Geometry Matrix (2F & 4F): This XRTOOLS 20-piece master set provides a complete, mirrored matrix of cutting diameters. It includes 10 pieces of 2-Flute (2F) end mills specifically designed for aggressive roughing, pocketing, and aluminum slotting, paired perfectly with 10 pieces of 4-Flute (4F) end mills engineered for high-rigidity peripheral milling and fine finishing in tougher steels.

• Titanium Nitride (TiN) Coating: Every end mill in this set features a premium gold Titanium Nitride (TiN) PVD coating. This ceramic armor drastically increases surface hardness and provides exceptional dry lubricity. It acts as a thermal barrier, extending tool life by up to 300% compared to uncoated HSS, and prevents "built-up edge" (BUE) where soft metals weld to the cutting flutes.

• Industrial HSS Core: Forged from premium shock-resisting High-Speed Steel, providing the core ductility required to withstand interrupted cuts and heavy feed rates without shattering like brittle solid carbide.

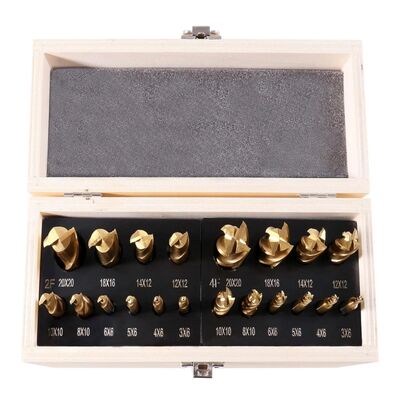

• Indexed Wooden Presentation Case: Precision cutting edges must be protected. The set is housed in a heavy-duty, foam-lined wooden case. This isolates each tool to prevent edge chipping during transit and provides instant visual organization for the machinist.

4. Technical Specifications

Included Sizes (Cutting Diameter x Shank Diameter):

• 2-Flute (2F) Sizes: 3x6, 4x6, 5x6, 6x6, 8x10, 10x10, 12x12, 14x12, 18x16, 20x20

• 4-Flute (4F) Sizes: 3x6, 4x6, 5x6, 6x6, 8x10, 10x10, 12x12, 14x12, 18x16, 20x20

5. Professional Industry Applications

• General Machine Shops & Tool Rooms: The ultimate self-contained milling kit for manual Bridgeport-style mills and entry-level CNC centers machining mild steel, cast iron, and aluminum alloys.

• Mold & Die Making: Utilizing the 2F cutters to rapidly hog out deep mold cavities, followed by the 4F cutters to achieve exact dimensional tolerances on the mold walls.

• Maintenance & Repair Operations (MRO): Rapidly cutting new keyways into drive shafts, facing off warped engine blocks, and fabricating custom replacement brackets on demand.

6. Operation and Safety Guidelines

• Flute Selection Protocol: Always use the 2-Flute (2F) end mills for plunge cutting (drilling straight down) and closed-slot milling, as the wider valleys allow chips to escape. Use the 4-Flute (4F) end mills for side-milling (profiling) and finishing passes where rigidity is more important than chip clearance.

• Coolant Optimization: While the TiN coating provides excellent heat resistance, flooding the cutting zone with high-quality water-soluble coolant or cutting oil will significantly enhance surface finish and further extend the life of the HSS core.

• Ensure Rigid Workholding: End mills generate massive lateral forces. Ensure your workpiece is clamped securely in a heavy-duty machine vise. Never attempt to use an end mill in a standard drill press, as the side-loads will destroy the drill chuck arbor.

7. FAQ: Expert Technical Support

Q: Why does the 3mm cutter have a 6mm shank (3x6)?

A: This is a crucial design for rigidity. If a 3mm cutter had a 3mm shank, it would be extremely fragile and would deflect (bend) under the side-load of milling. By stepping the shank up to a thick 6mm, the tool remains hyper-rigid, preventing chatter and snapping during operation.

Q: Can I use the 4-Flute end mills to cut aluminum?

A: It is highly discouraged. Aluminum is a soft, "gummy" metal. It produces large, stringy chips. The narrow valleys of a 4-Flute end mill will quickly pack with aluminum chips, causing the tool to bind and snap. Always use the included 2-Flute end mills for aluminum and plastics.

Q: Can I plunge (drill straight down) with the 4-Flute end mills?

A: Generally, no. Most standard 4-flute end mills are not "center-cutting" and lack the geometry to drill straight down into solid material. You should either pre-drill a starting hole, ramp the tool in at an angle, or use the 2-flute end mills (which are center-cutting) to establish your pocket.
